P20 Tool Steel - ~1.2311 - ~40CrMnMo7 - Plastic mold steel

Delivered in its annealed condition, the P20 tool steel can be hardened as explained below as well as used in its delivered condition. In general, P20 is mainly used for plastic molds, die casts and tools but is also suitable for applications such as rails and shafts. The steel grade has good weldability and can be polished to an excellent finish, for applications which require a high surface hardness the P20 tool steel can be case hardened or nitrated.

Annealed material is easier to machine, it reduces wear on tools and is more malleable. When using annealed material it is important to make sure it is suitable for the application as it might not perform as well in high wear or high load applications as a hardened steel would.

Purchase P20 Tool Steel Online

Select Your Steel Length below

Imperial and Metric Steel Sizes for Sale

Imperial Steel Size

steel type image
$mart Flat Stock [$mart]

Standardized Precision Blanks

Metric Steel Size

steel type image
$mart Flat Stock Metric [$martM]

Standardized Precision Blanks Metric

You can easily reach out to one of our order consultants to find the exact steel products you need.
chat icon
Any Questions?
Icon of an atom

P20 Tool Steel: Standard values

Working hardness: 32 HRC - 50 HRC
Delivery condition: max. 225HB

Chemical composition in %

C

0.350000

0.35

0.450000

0.45
Si

0.200000

0.2

0.400000

0.4
Mn

1.300000

1.3

1.600000

1.6
P

0.000000

0

0.035000

0.035
S

0.000000

0

0.035000

0.035
Cr

1.800000

1.8

2.100000

2.1
Mo

0.150000

0.15

0.250000

0.25

P20 Tool Steel: Technical Data

Icon of a spanner

P20 Tool Steel: Technical Properties

Cold work steel and plastic mold steel (here annealed version). Good polishability and etchability. High through-hardenability and uniform component strength.

Icon of a check mark

P20 Tool Steel: Applications

mechanical engineering, jigs, base plates, assembling parts, molding frames, plastic molds, plastic processing, injection molds, die casting molds, hydroforming tools, recipient sleeves, intermediate sleeves, folding bars, tool holders, extrusion presses, tube presses, die holders, die insert

Chemical designation: Working hardness: 32 HRC - 50 HRC
Delivery condition: max. 225HB

C

0.350000

0.35

0.450000

0.45
Si

0.200000

0.2

0.400000

0.4
Mn

1.300000

1.3

1.600000

1.6
P

0.000000

0

0.035000

0.035
S

0.000000

0

0.035000

0.035
Cr

1.800000

1.8

2.100000

2.1
Mo

0.150000

0.15

0.250000

0.25

Cold work steel and plastic mold steel (here annealed version). Good polishability and etchability. High through-hardenability and uniform component strength.

mechanical engineering, jigs, base plates, assembling parts, molding frames, plastic molds, plastic processing, injection molds, die casting molds, hydroforming tools, recipient sleeves, intermediate sleeves, folding bars, tool holders, extrusion presses, tube presses, die holders, die insert

P20 General Information

Where can the P20 tool steel be used?

P20 tool steel, in its annealed condition, is easier and faster to machine to develop for example prototypes or for tools with low wear and stresses, it can be cold formed and engraved.

Is the P20 a stainless steel?

The P20 is not a stainless steel in the classic sense. Stainless steel has a chromium content of a minimum of 10.5% which makes it corrosion resistant.

Is P20 tool steel corrosion resistant?

P20 has a chromium content of 1.8 - 2.1% and is therefore not a corrosion resistant steel in the classic sense like stainless steel. Additional surface treatment and maintenance as well as keeping parts in a dry environment may prolong the resistance to corrosion but can not hold it back completely.

Is P20 tool steel suitable for magnetic clamping?

The iron in the P20 makes it ferromagnetic and therefore the P20 is magnetizable

P20 tool steel heat treatment

Annealing tool steel P20

Heat the material uniformly to a temperature of 1310 - 1364°F (710 - 740°C), then cool it in the furnace.


Normalizing P20 tool steel

Normalizing will refine the grain structure and give the steel a uniform microstructure. It can help to improve machinability and can relieve internal stresses which may have been introduced during former heat treatment, forging or casting for example.

Heat the material uniformly above its critical temperature and soak for approx. 1 hour per 1 inch (25.4 mm) of thickness. Then remove the parts from the furnace and cool them in still air.

Finish the process with a thorough inspection that the parts have the desired microstructure and properties.

Stress relieving tool steel P20

In general when stress relieving P20 parts, after machining, they are soaked for 1 hour per 1 inch (25.4 mm) of thickness at a temperature of 1022 - 1112°F (550 - 600°C) and then cooled down in still air. Cooling in still air is a controlled way to ensure that no stresses are reintroduced.

Reducing stresses prevents the P20 from distorting or cracking, improves the mechanical properties of the material and it enhances the dimensional stability which is important for molds.

Hardening tool steel P20

To harden the P20 , heat the parts uniformly to a temperature of 1544 - 1598°F (840 - 870°C), soak them for 30 minutes for the first inch (25.4 mm) and any additional inch of thickness for 15 minutes.

Quenching P20 tool steel

The parts should be quenched in the following media with a temperature of 356 - 392°F (180 - 200°C):

• Oil
• Saltbath

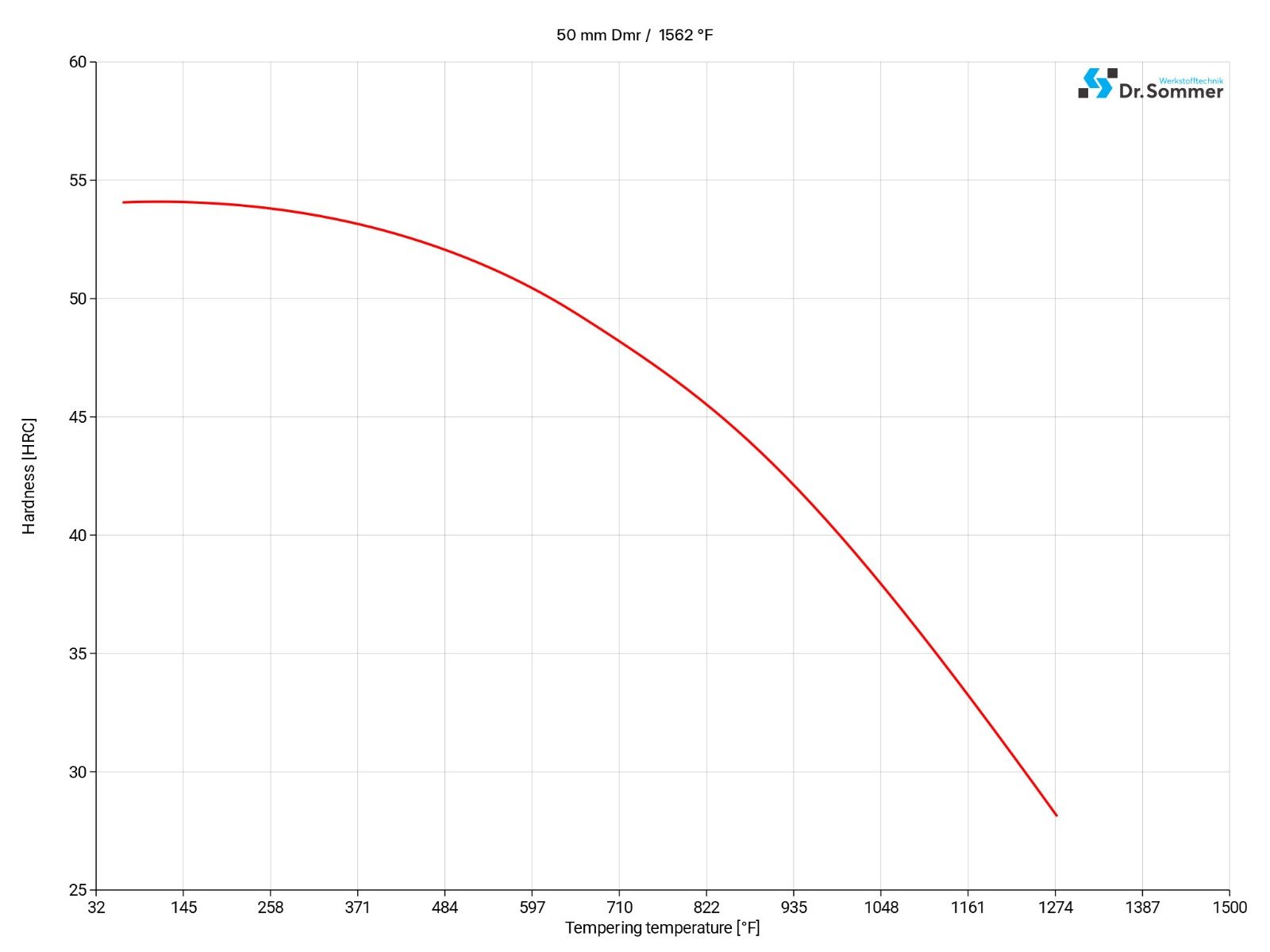

Tempering P20 tool steel

Immediately after quenching the workpieces should be tempered. The tempering temperature should be held for a minimum of 2 hours or 1 hour per inch (25.4 mm) of thickness and then the workpieces  should be cooled in air to room temperature.

p20 tool steel tempering chart diagramp20 tool steel tempering chart diagram

P20 tool steel dimensional changes

When this steel grade is quenched in oil from a hardening temperature of 1550°F (843°C) this material normally expands by 0.003inch/inch (0.0762mm/mm). However dimensional changes during heat treatment are largely impacted by size and shape of the parts. To minimize dimensional changes, it is important to adhere to good heat treatment practices.

Surface treatment for the P20 tool steel

Surface treating the P20 tool steel has benefits like extended service life, improved performance, corrosion resistance or to enhance the visual appeal of parts made from this steel grade.

Following are a few examples of surface treatments that can be given to P20 parts.

Nitrating P20 tool steel

P20 can be nitrated, this treatment introduces nitrogen into the surface, to add a hard and abrasion resistant surface to the depth of 1/16 inch (0.40 mm).

PVD coating the P20 tool steel

Physical Vapor Deposition (PVD) deposits a thin film on the surface of the material, this treatment enhances wear resistance and can reduce friction.

Electroless Nickel Plating the P20 tool steel

This process deposits a nickel alloy coating, without the electrical current, by chemical reduction onto the surface of the material.

Black oxide coating (bluing) the P20 tool steel

Black oxide coating can enhance the corrosion resistance of the parts but is mostly done for esthetic purposes. It will give parts a blue-black coloring that will reduce light reflecting off the surface.

Laser surface hardening P20 tool steel

Laser surface hardening can localize surface hardening without affecting the properties of the steel and provides better wear resistance in those areas. This is done by using a high powered laser that heats certain surface areas and rapidly cooling those areas again.

Machinability of the P20 tool steel

The P20 tool steel has a good balance of machinability and toughness.

Forging the P20 tool steel

P20 can be forged within a temperature range of 1650 - 2000°F (899 - 1093°C). Do not let the forging temperature drop below 1600°F (871°C).

Welding P20 tool steel

P20 can be welded using all conventional methods. Preheat the material to a temperature of 600 - 700°F (316 - 371°C). Do not drop the welding temperature below 600°F (316°C). Fillers should be matched to the hardness of the base metal. Cool slowly to 100 - 150°F, then post heat to a temperature of 1000°F (538°C) for one hour per inch (25.4 mm) of weld depth and do not exceed 1050°F (566°C) as this will result in losing hardness. Double temper if possible.

Wear resistance of the P20 tool steel

On a scale where 1 is low and 6 is high, the P20 scores a 3.

P20 tool steel tensile strength

The P20 has a tensile strength of approx. 108.8 KSI on delivery (0.145 KSI = 1MPa). In order to reach this value, a tensile test is performed to show how much force is needed to stretch or elongate a sample before it breaks.

P20 tool steel yield strength

The yield strength shows how much stress has to be applied to plastically deform and when the point is reached for the material not to return to its original state after stresses have been removed. It then either stays in the mischaped form or breaks.

The P20 range for this tool steel is between 120 - 125 KSI (827 - 862 MPa).

P20 tool steel working hardness

The working hardness for the P20 is in the range of 300 - 469 BHN (32 - 50 HRC).

P20 tool steel specific heat capacity

The specific heat capacity of the P20 at room temperature is 0.43 J/g-°C (0.103 BTU/lb-°F). This value shows how much heat is needed to heat 1lb of material by 1 Fahrenheit.

p20 tool steel specific heat capacity chartp20 tool steel specific heat capacity chart

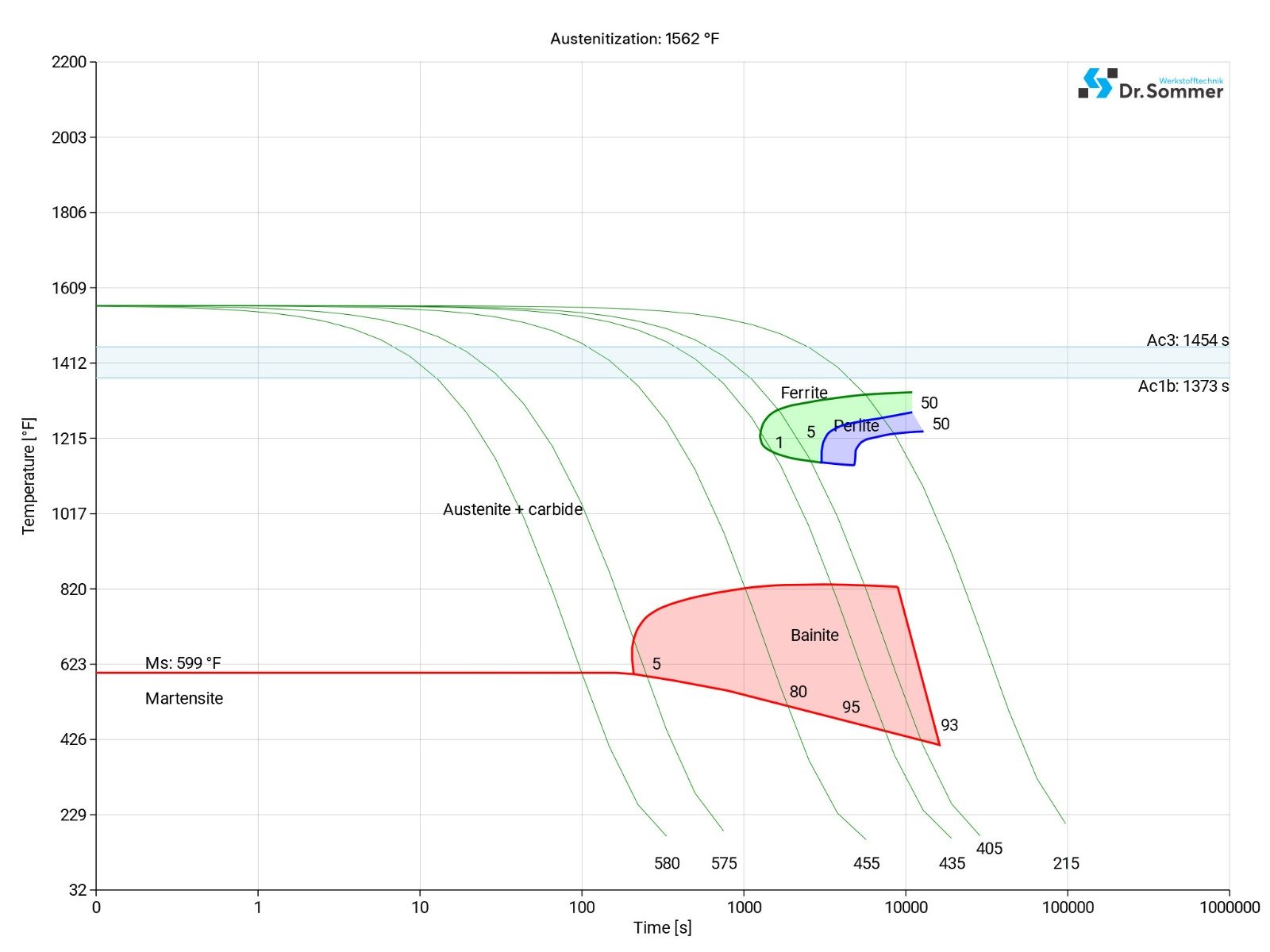

P20 tool steel continuous TTT-diagram

This diagram shows micro changes over time at different temperatures. Those are important during heat treatment as they show information about the optimum conditions for processes such as hardening, annealing and normalizing.

p20 tool steel continuous ztu-diagram ttt-chart structural changesp20 tool steel continuous ztu-diagram ttt-chart structural changes

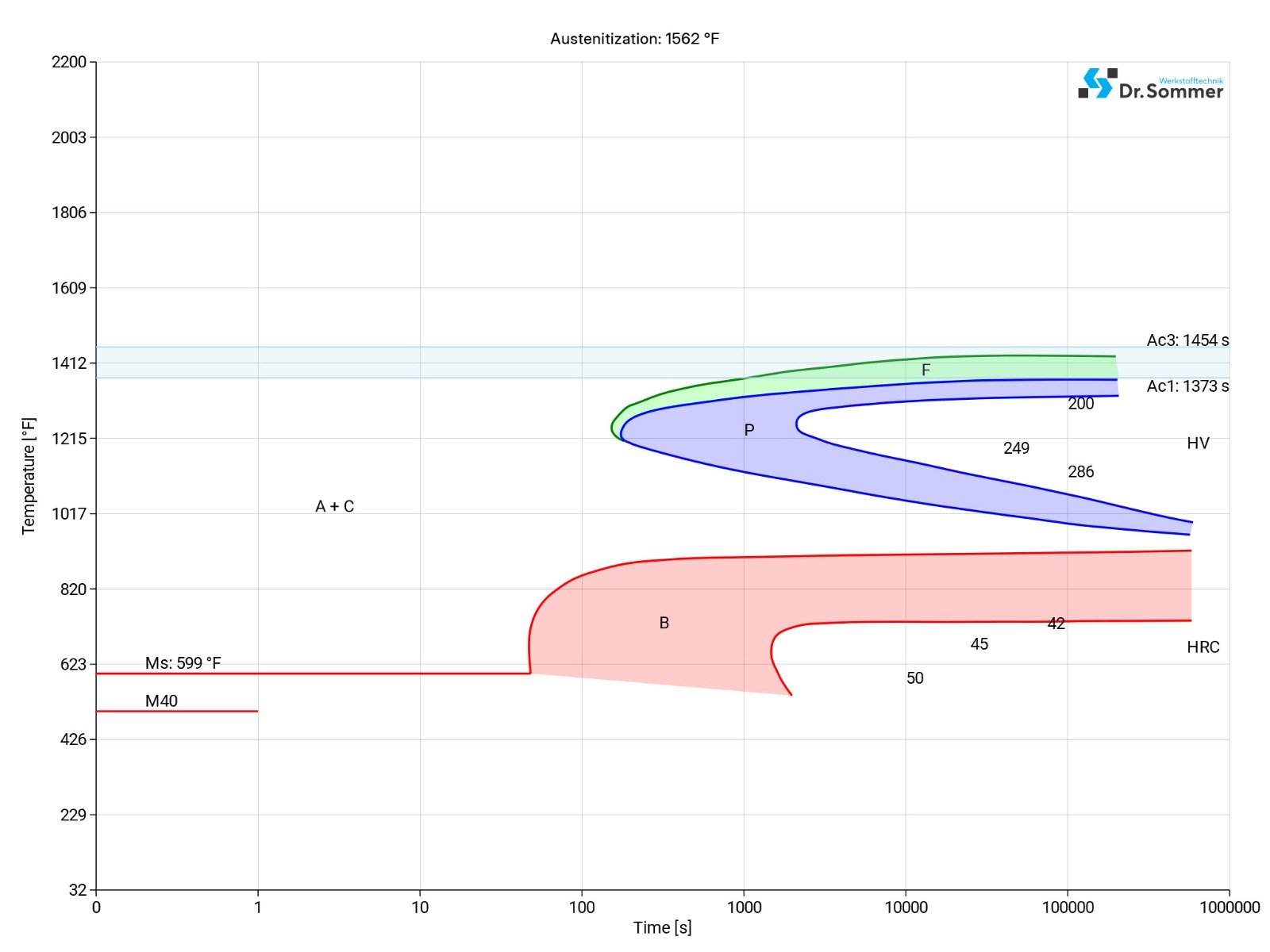

P20 tool steel isothermal TTT-diagram

This diagram shows the structural changes at micro level over time at a constant temperature. It shows at what temperature and after what time different phases, e.g., perlite, martensite or bainite start to build.

p20 tool steel isothermal time temperature transformation (TTT) diagramp20 tool steel isothermal time temperature transformation (TTT) diagram

P20 steel properties

P20 tool steel cold work

P20 can be readily cold worked using regular tooling methods.

P20 tool steel density

Typically the density of P20 tool steel is 0.284 lb/in3 (7.85g/cm3) at room temperature.

P20 tool steel thermal conductivity

The heat conductivity for the P20 tool steel is at 34.5 W/(m*K) (239 BTU/(h-ft*°F)) at room temperature.

Heat conductivity table
Value W/(m*K) Value BTU/(h-ft*°F) By temperature
34.5 19.95 68 °F
33.5 19.37 662 °F
32.0 18.50 1292 °F
p20 tool steel thermal conductivity diagram chartp20 tool steel thermal conductivity diagram chart

AISI P20 thermal expansion coefficient

The following table shows expansion or contraction at various temperatures, which may be very important for high temperature works or when working with high temperature changes.

Medium thermal expansion coefficient
10-6m/(m • K) At a temperature of
11.1 68 - 212°F
12.9 68 - 392°F
13.4 68 - 572°F
13.8 68 - 752°F
14.6 68 - 932°F
14.9 68 - 1292°F
p20 tool steel thermal expansion coefficient diagram chartp20 tool steel thermal expansion coefficient diagram chart

P20 tool steel specific electrical resistivity

The following table shows the electrical resistivity of the P20 tool steel.

Table of the specific electrical resistivity
Value At a temperature of
0.47 (Ohm*mm²)/m 68°F

Modulus of elasticity (Young’s Modulus) of the P20 tool steel

The stress and strain modulus or modulus of elasticity (Young’s modulus) for P20 tool steel  is at 31.775 KSI (219 GPa).

Is the P20 a knife steel?

P20 tool steel is not commonly used for knife making. While it has some of the attributes like edge retention, toughness, corrosion resistance or hardness, it does not have enough.

Conclusion

As a tool steel the P20 is a dependable and accomplished choice when it comes to molds, dies and tools. It has a great balance of machinability and toughness and is easy to polish which is beneficial to the finish of the molded products.

Tool steel P20 datasheet

As a P20 steel supplier we provide you with the datasheet for the tool steel P20 steel in PDF format.
